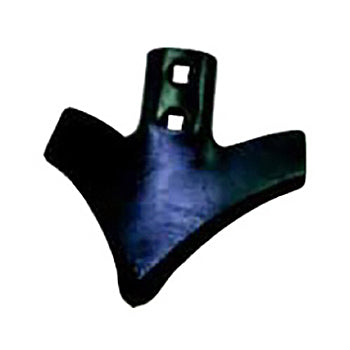

FM Series Sweep - 9"
$1772
SKU: 686-FM479
Compares to 47UW9B7 Ultra Wing. Replaces CIH 1547098C2
The Field Master Series sweeps come in popular sizes of 7, 9 and 10 Inch widths. The 7 and 9 Inch are also available in a Wear Coated option.
All sweeps are manufactured to OEM specifications. The bottom line with any good cultivator sweep is its ability to last in all soil conditions - and the sweeps will do just that. sweeps wear consistently and never narrow for long life and high performance.
The Field Master series is designed to fit John Deere; IHC Vibrashank; D.M.I. Tigermate; Kent; Hiniker; Ingham; Wil-Rich; Crust-Buster; Hesston; Landoll; Rhino; Athens; Flexi-Coil; Sunflower.
Field Master Sweeps Use Two 7/16 inch #3 Plow Bolts 1-5/8' to 1-3/4 inch Spacing
| Application | Field Cultivator |
|---|---|
| Bolt Size | 7/16 Inch |
| Bolt Spacing | 1-5/8 to 1-3/4 Inch |
| Brand | SMA |
| Extended Wear | No |
| Product Type | Cultivator Sweep |
| Series | Field Master |
| Shank Size/Angle | 47 Degree |
| Thickness | 1/4 Inch |
| Width | 9 Inch |
Replaces No.
- N331104 (JOHN DEERE)
- N188993 (JOHN DEERE)
- SW091447
- 1547098C2 (CNH)
- ODB9
- 92710029
- 47UW9
- 47UW9B7
